Detailed Display of Galvanized steel fish tank with tarpaulin liner
Easy installation
UV resistant
Convenient transportation
Low investment

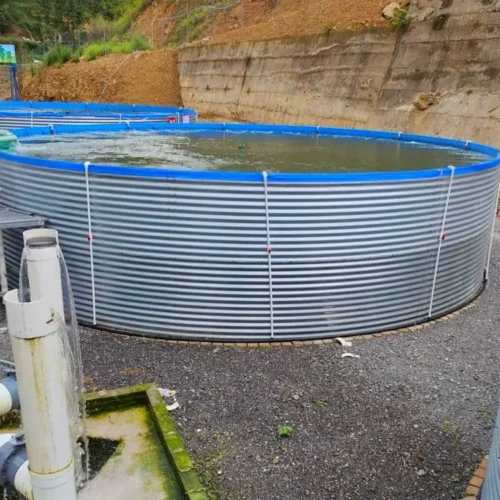

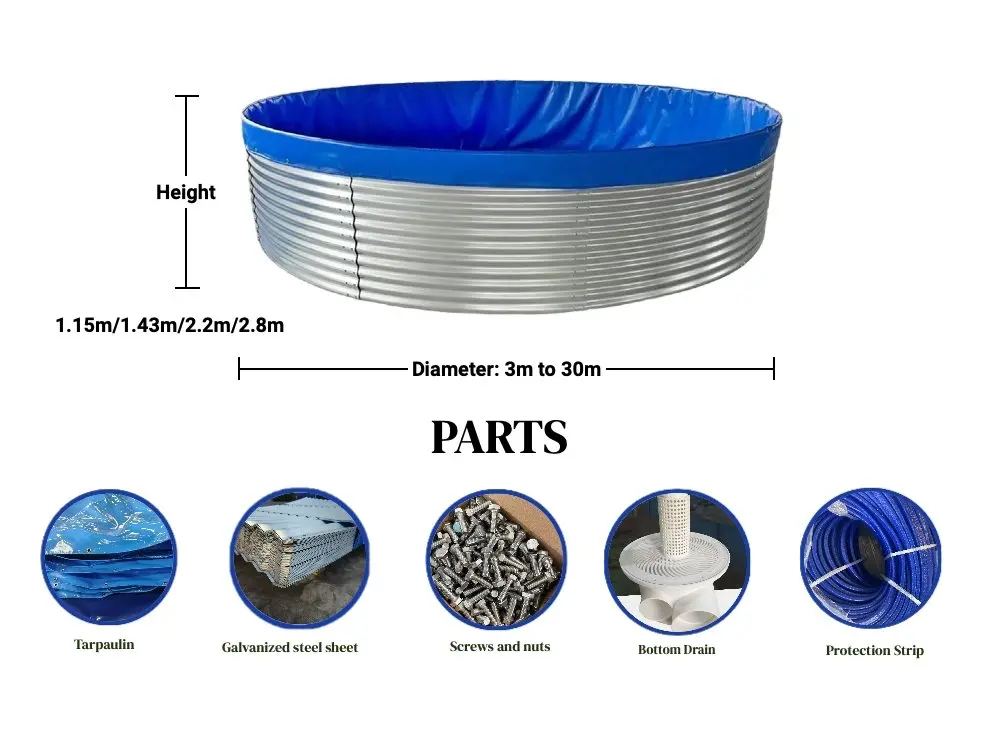

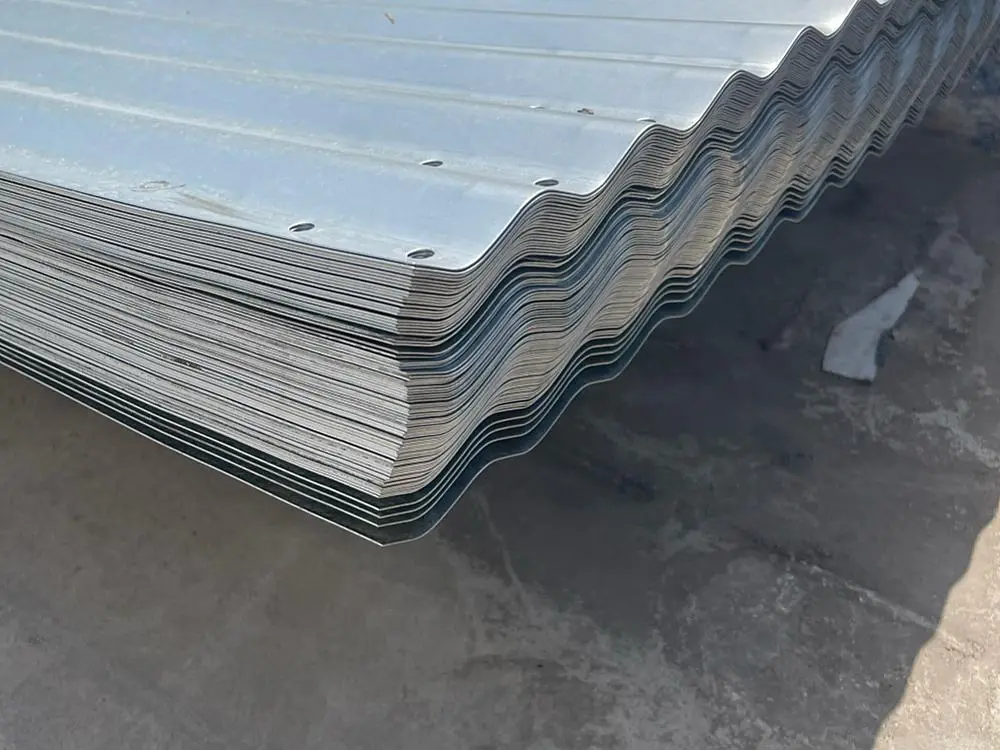

Hot-dip Galvanized steel fish tank frame
Steel sheet thickness: 1.0mm/1.2mm/1.5mm
The galvanized steel sheets frame are sourced from one of China’s top 10 steel manufacturers.
The hot-dip galvanized zinc coating can be selected from 80g or 275g.
The high-standard zinc coating effectively prevents corrosion and extends the service life of the galvanized fish tank.

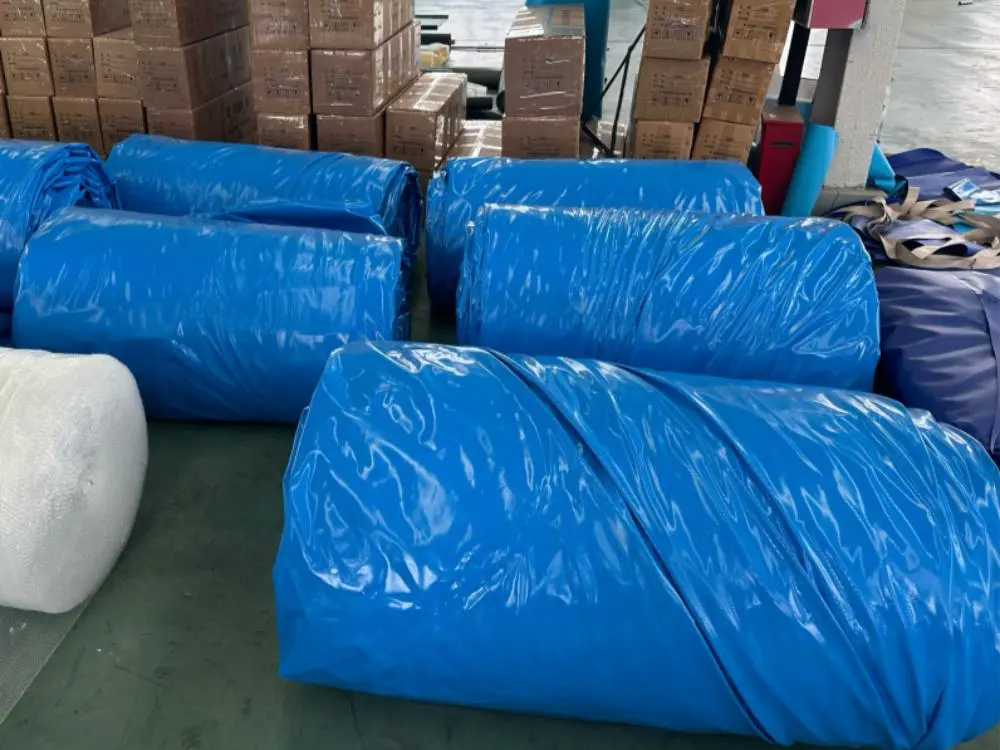

Waterproof Tarpaulin Linner
Tarpaulin thickness: 0.5mm/0.7mm/0.9mm/1.2mm
The PVC tarpaulin is sourced from one of China’s top 5 waterproof tarpaulin manufacturers.
The raw materials are virgin, with no recycled materials used, ensuring the material’s tensile strength and UV resistance.
The high-standard raw materials guarantee a lifespan of 8-10 years for the PVC tarpaulin fish tank.

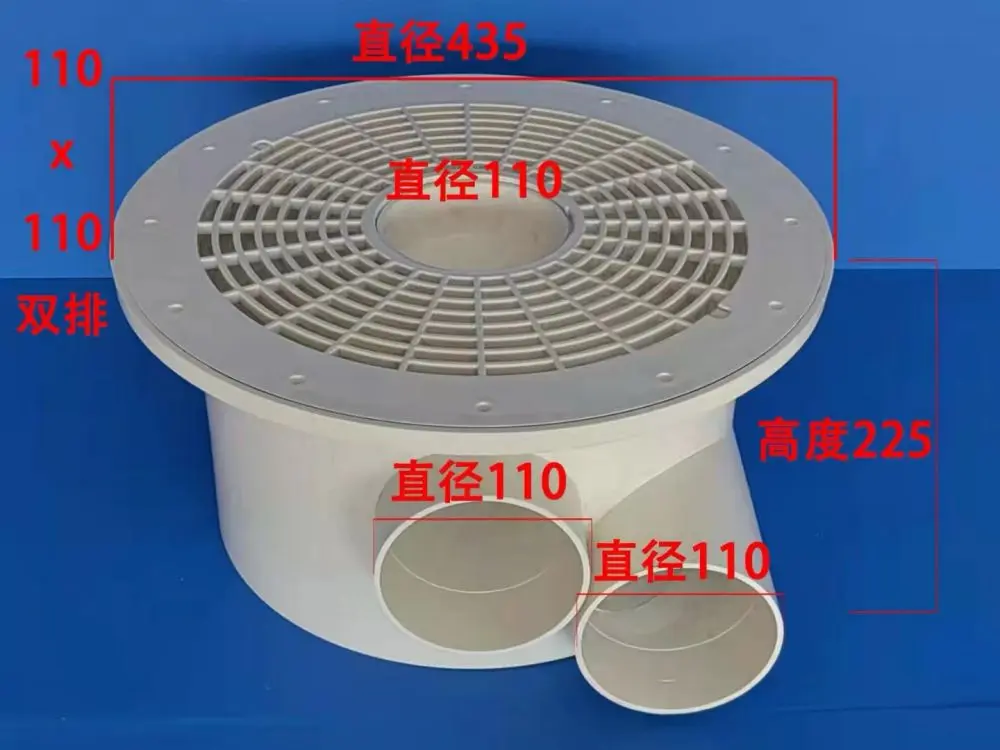

Central sewage collector
Sewage drain for a galvanized steel tarpaulin fish tank
The central wastewater collector is installed at the bottom of the galvanized stock tank, which can quickly collect wastewater from the tarpaulin tank and connect to a PVC pipe for discharge.
There are several models to choose from, depending on the tarpaulin fish tank size.
- Tarpaulin fish tanks are a more specialized type of canvas fish pond.
- In China, “canvas” usually refers to fabric used solely for waterproofing, typically for truck canopies, outdoor cargo protection, or outdoor rain covers.
- We typically refer to “tarpaulin” with a central anti-crack mesh and a thicker PVC coating.
- Tarpaulin fish tank. It’s not just about waterproofing; tensile strength, abrasion resistance, and UV resistance are also important.
Galvanized Steel Fish Tank With Tarpaulin Model Selection
| Model | Capacity | Diameter | Height | Suitable fish raised No. |
|---|---|---|---|---|
| FPS-1503 | 8,000L | 3 | 1.15 | 480-800 |
| FPS-4303 | 10,000L | 3 | 1.43 | 600-1000 |
| FPS-1504 | 14,000L | 4 | 1.15 | 840-1400 |
| FPS-4304 | 17,000L | 4 | 1.43 | 1020-1700 |
| FPS-1505 | 22,000L | 5 | 1.15 | 1320-2200 |
| FPS-4305 | 28,000L | 5 | 1.43 | 1680-2800 |
| FPS-1506 | 32,000L | 6 | 1.15 | 1920-3200 |
| FPS-4306 | 40,000L | 6 | 1.43 | 2400-4000 |
| FPS-1507 | 44,000L | 7 | 1.15 | 2640-4400 |
| FPS-4307 | 55,000L | 7 | 1.43 | 3300-5500 |
| FPS-1508 | 57,000L | 8 | 1.15 | 3400-5700 |
| FPS-4308 | 71,000L | 8 | 1.43 | 4200-7000 |
| FPS-1510 | 90,000L | 10 | 1.15 | 5400-9000 |
| FPS-4310 | 112,000L | 10 | 1.43 | 6600-11000 |
| FPS-1512 | 129,000L | 12 | 1.15 | 7200-12000 |
| FPS-4312 | 161,000L | 12 | 1.43 | 9600-16000 |
The maximum diameter can reach 30m, and the height 2.8m. For more sizes, please contact us.

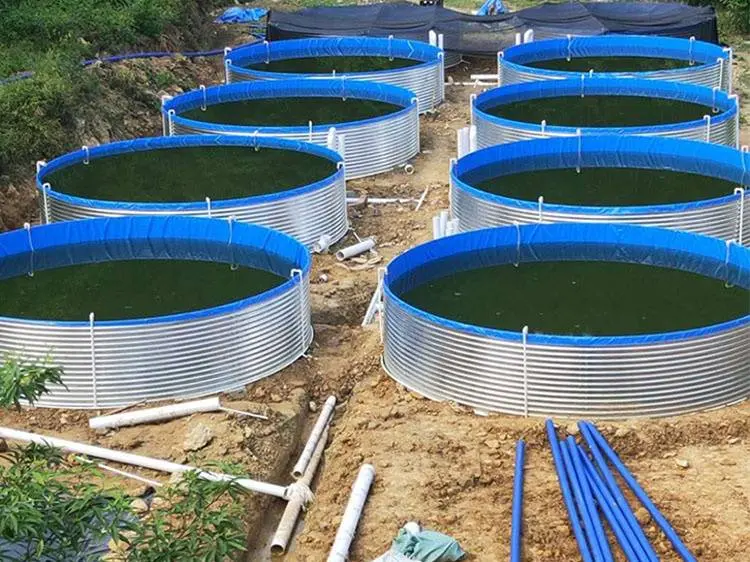

How to Construct A Galvanized Steel Fish Tank Tarpaulin Fish Pond

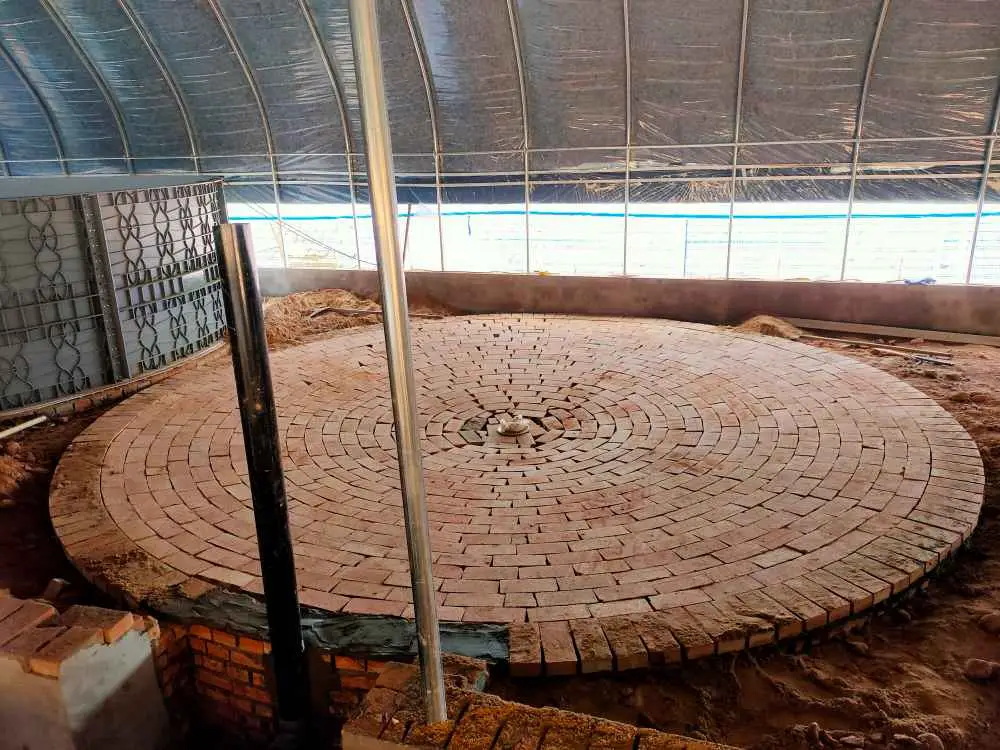

Step 1 – Site Ground Reinforcement
The area where the galvanized steel stock tank will be installed needs ground reinforcement. Concrete or compacted soil is recommended.

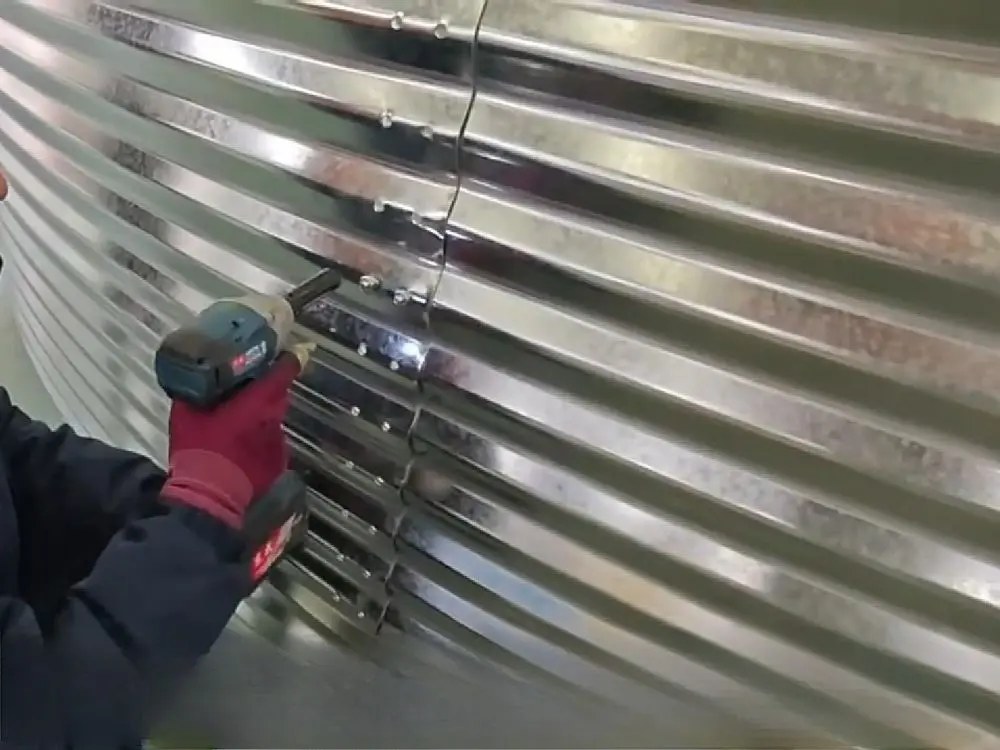

Step 2 – Galvanized steel sheet installation
Two adjacent boards can be secured with screws and can be quickly installed using an electric pistol drill.

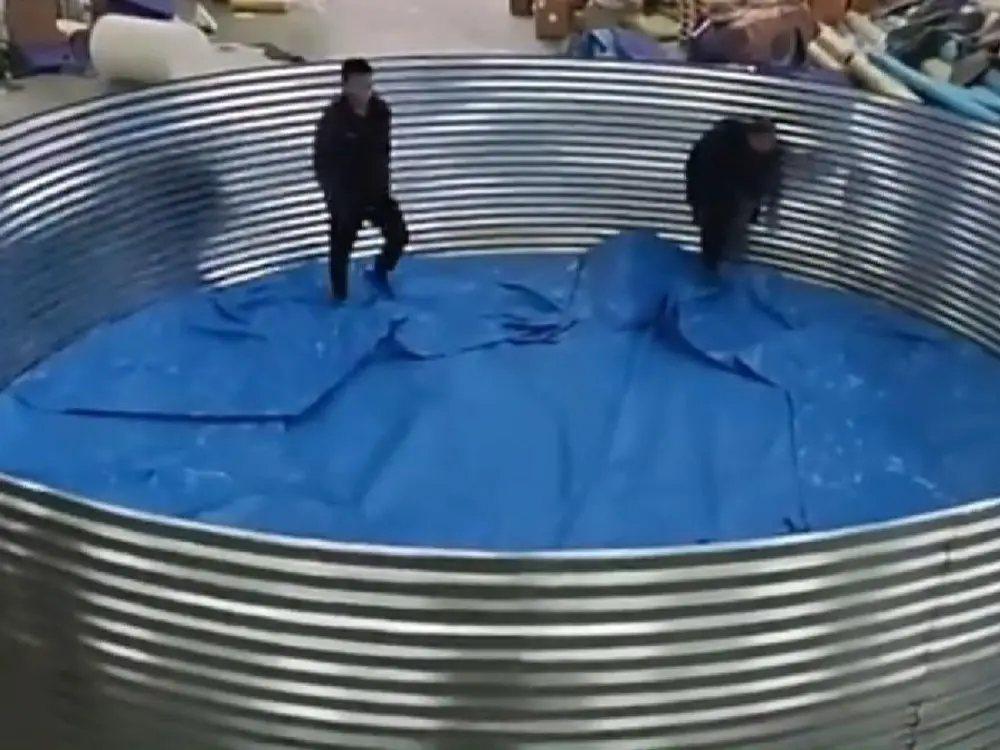

Step 3 – Install tarpaulin liner
For Tarpaulin Linner, first flatten the bottom, then locate the weld seam between the bottom and sides, ensuring the seam is at the bottom of the galvanized steel sheet, before securing the top clip ring.

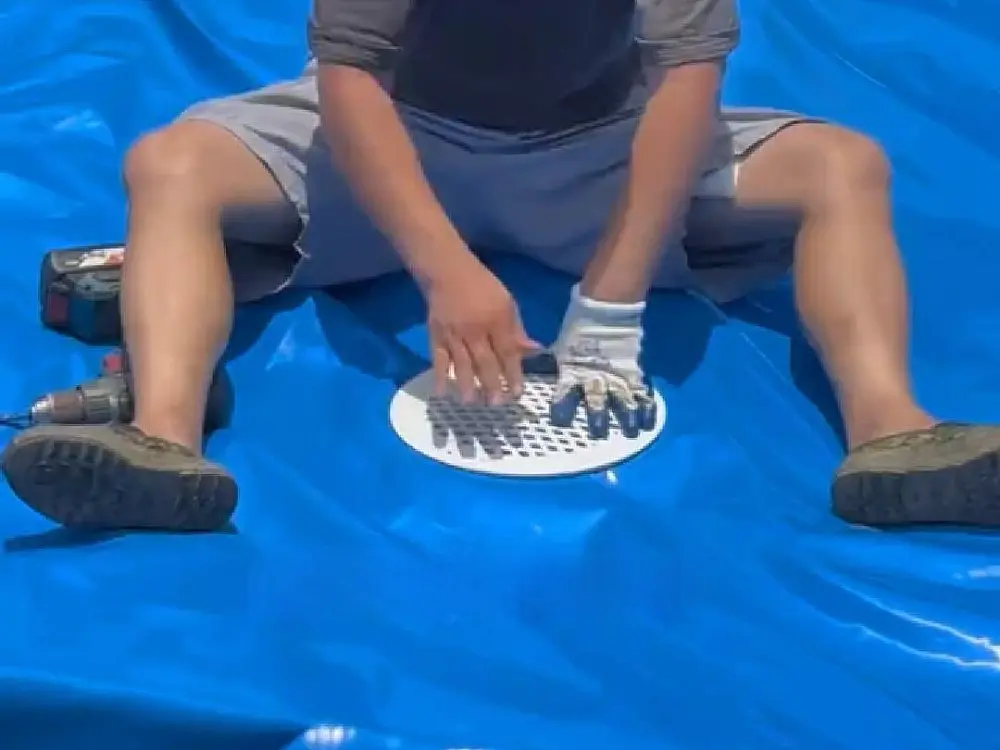

Step 4 – Install bottom central drain
Drill a hole in the tarpaulin according to the dimensions of the bottom central drain, apply silicone sealant, and secure it with screws.
If you need more detailed installation steps, please watch our installation video.

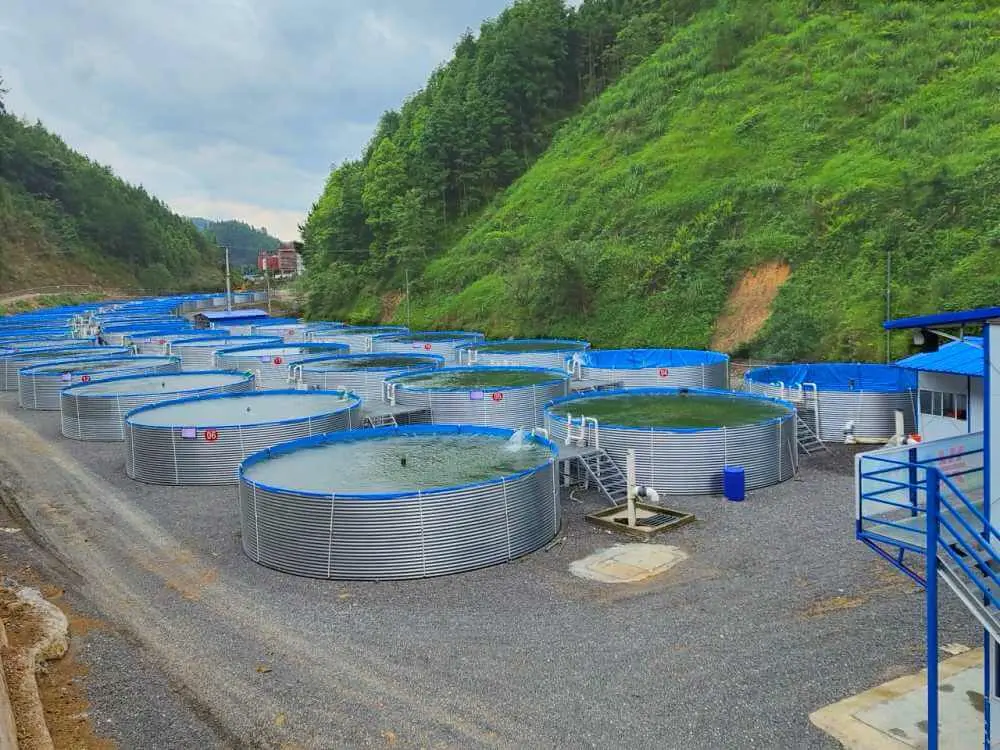

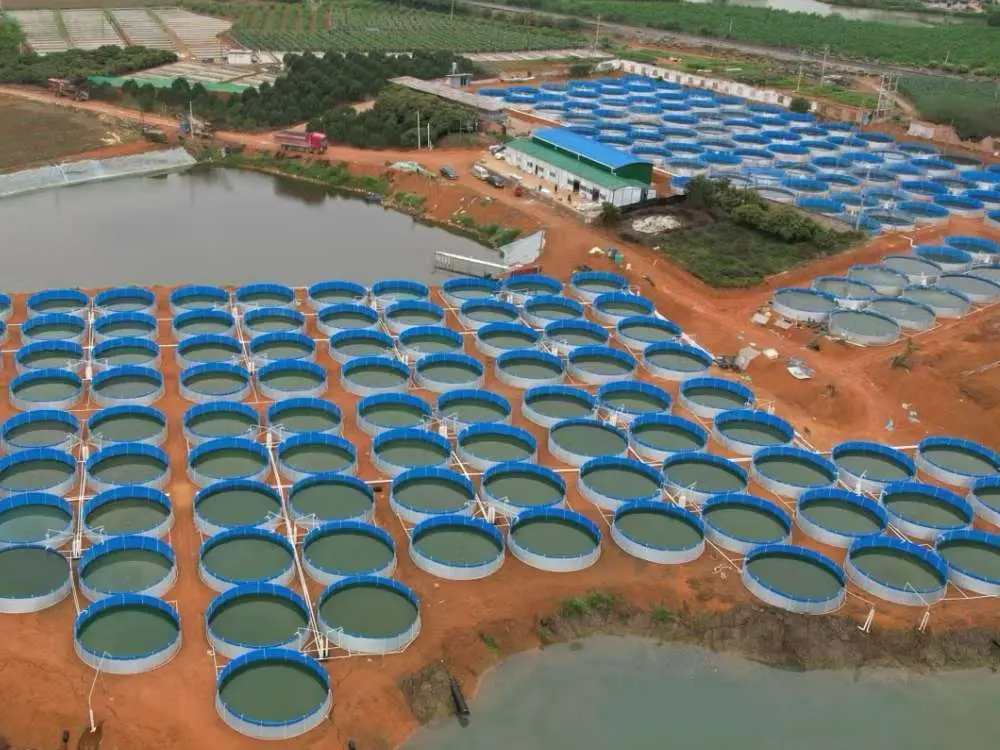

Why are galvanized steel fish tanks with tarpaulin the best commercial tilapia fish tanks?
Tilapia is a widely farmed fish species worldwide. In large-scale commercial tilapia farming, investment and yield must be considered.
Tilapia fish tank design needs to consider factors such as timely wastewater discharge, rapid installation, ease of management, and low investment costs.
Traditional tilapia farming considered using underground canvas ponds, but now more and more farmers are considering area, unit yield, and management difficulty
Therefore, a large galvanized steel tarpaulin fish tank is the best choice.
Why Choose Our Galvanized Steel Tank Canvas Fish Pond
Galvanized steel sheet quality guaranteed.
We strictly adhere to an 80g/275g zinc coating thickness to ensure the steel sheet’s rust resistance.
1mm national standard thickness; non-standard thicknesses are not used.
Tarpaulin quality guaranteed.

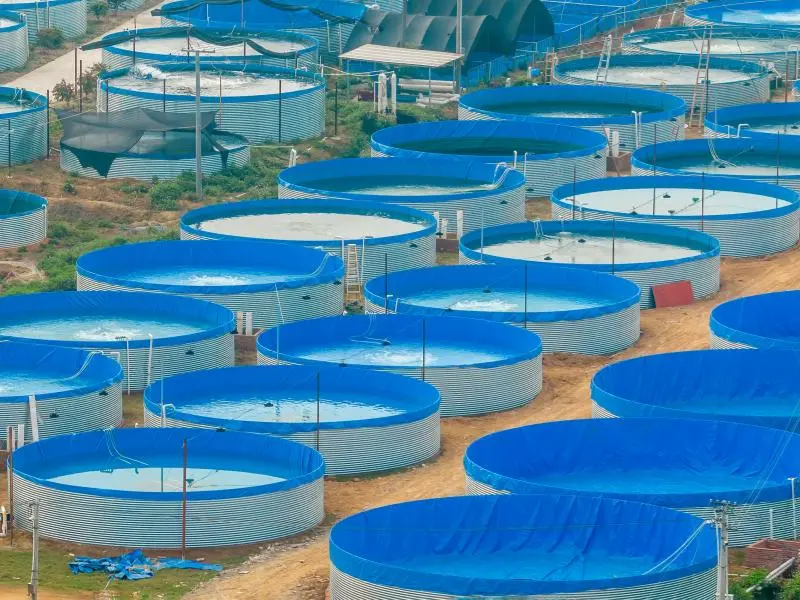

Galvanized Steel Pvc Tarpaulin Fish Tank Price
Custom Tilapia Fish Tanks For Sale

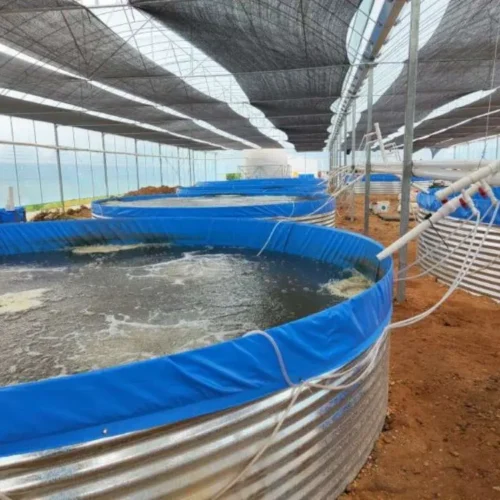

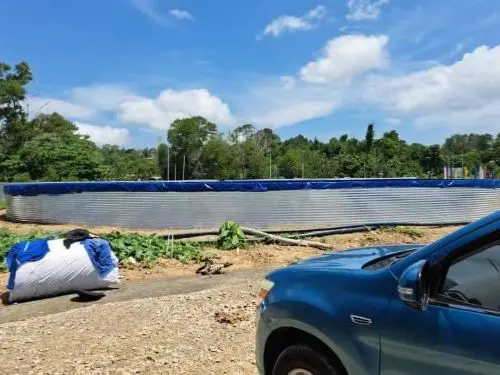

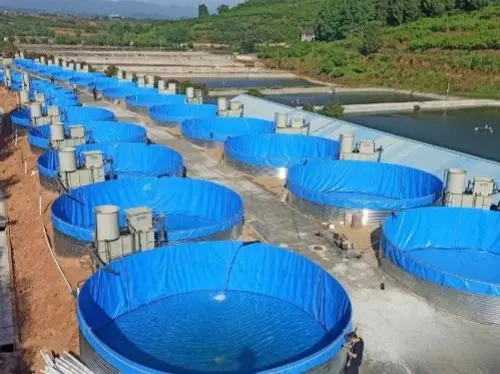

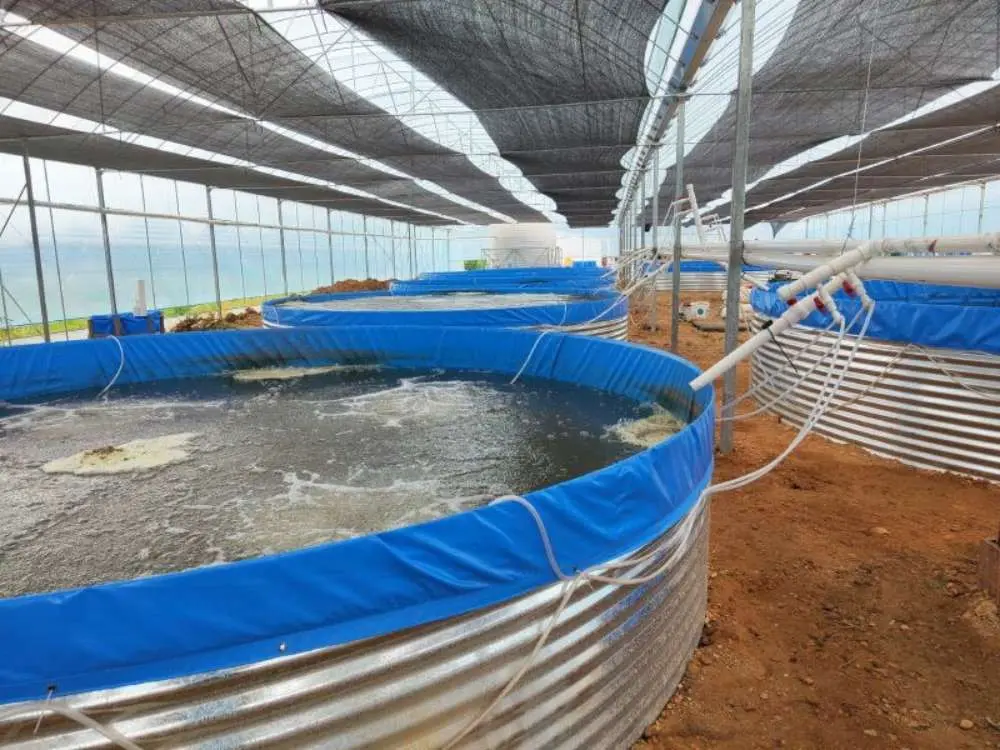

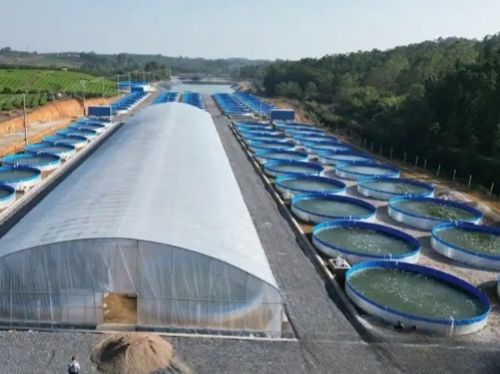

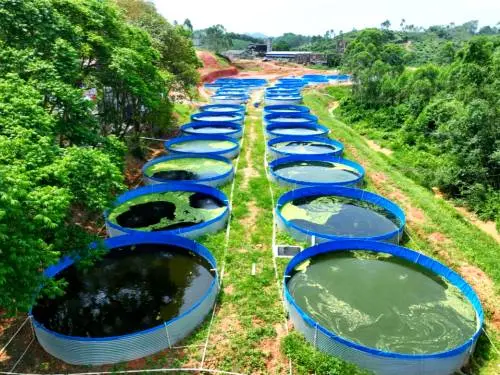

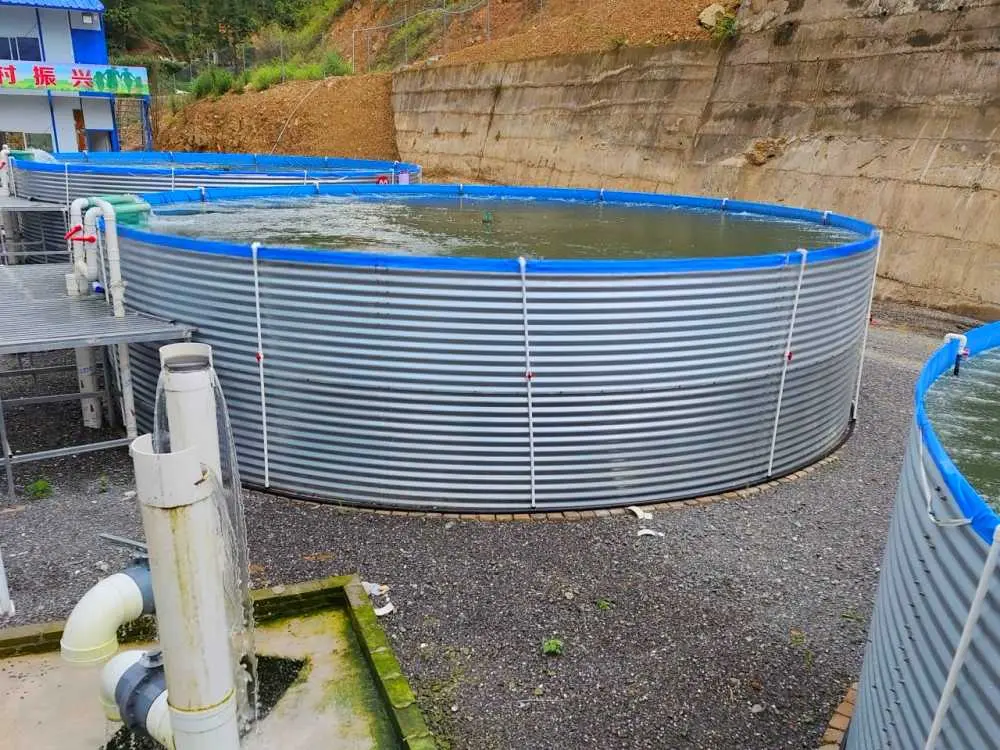

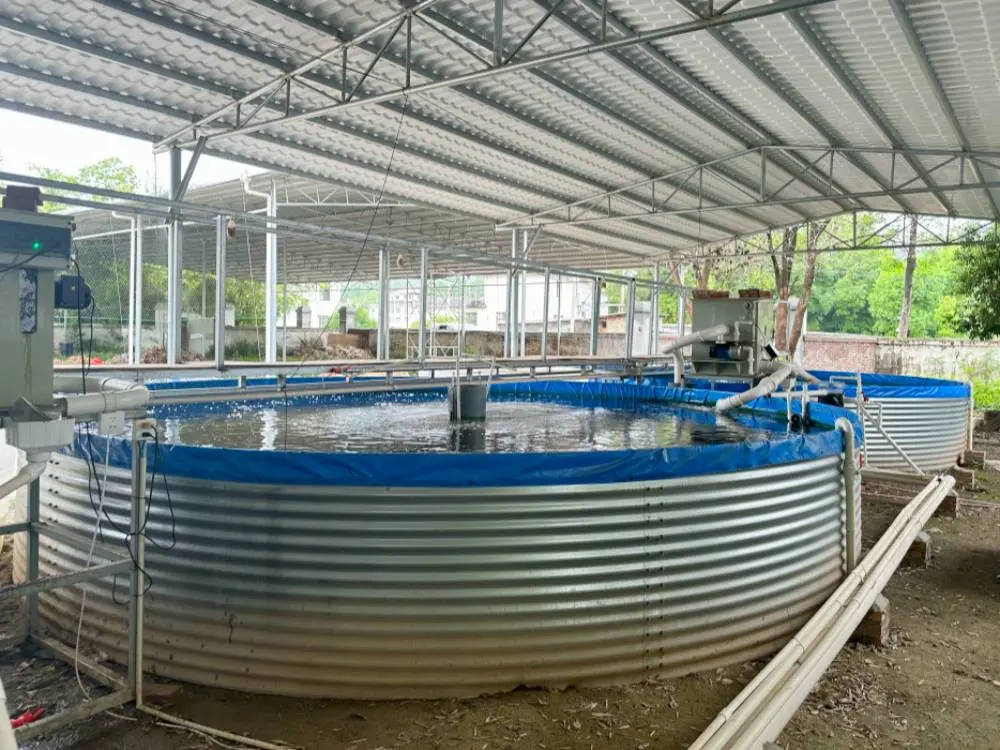

Request Our Latest PriceGalvanized steel fish tank canvas fish pond project showcase
Tarpaulin fish tank in Ghana-tilapia farming
Tarpaulin fish tank in Abuja-tilapia farming
Tarpaulin fish tank in Indonesia-tilapia farming
Tarpaulin fish tank in China-Trout farming
Frequently Ask Questions For Galvanized steel tank Tarpaulin fish pond
Durable industrial-grade tub fish pond for aquaculture.
Minimum order is 1 set. Please contact us for the latest pricing and shipping options.
Other types of Aquauclture Tanks recommended
